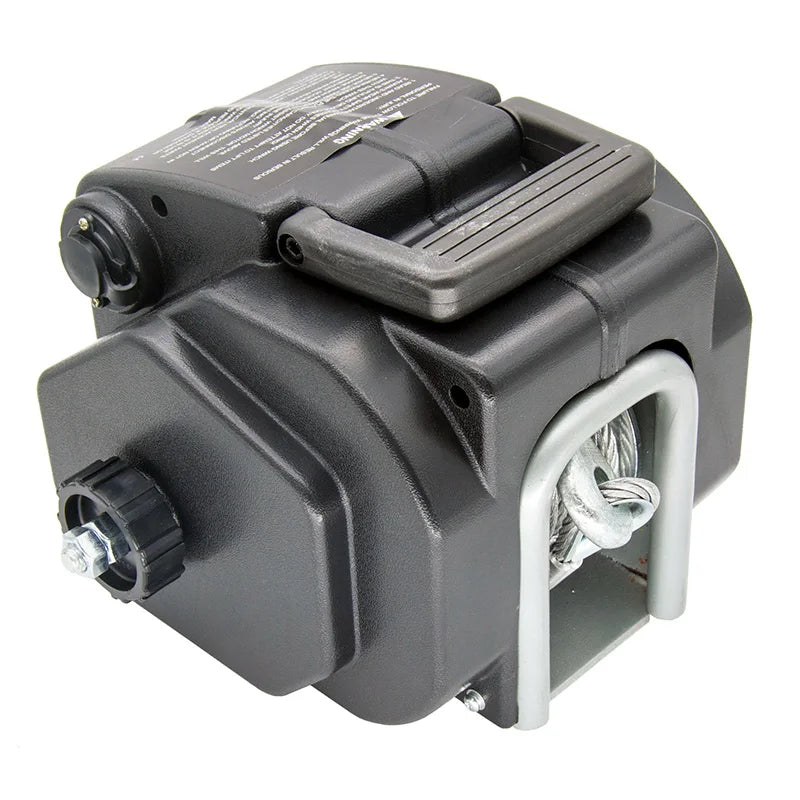

BYSSEA Electric Boat Trailer Winch 5000 Lb Capacity With 717 To 1 Gear Ratio For Boat Trailers

The BYSSEA Electric Trailer Winch is built for boat trailers and marine applications, delivering strong pulling power with flexible control for easier loading.

• Rated Pulling Capacity: 5000LB
• Gear Ratio: 717:1 high gear ratio design provides enhanced pulling power for demanding loading tasks.
• Waterproof Protection: IP65 waterproof housing with self-closing socket cover protects against dust and water ingress.
• Durable Construction: Galvanized steel cable, pulley, and hand crank offer excellent strength and corrosion resistance.

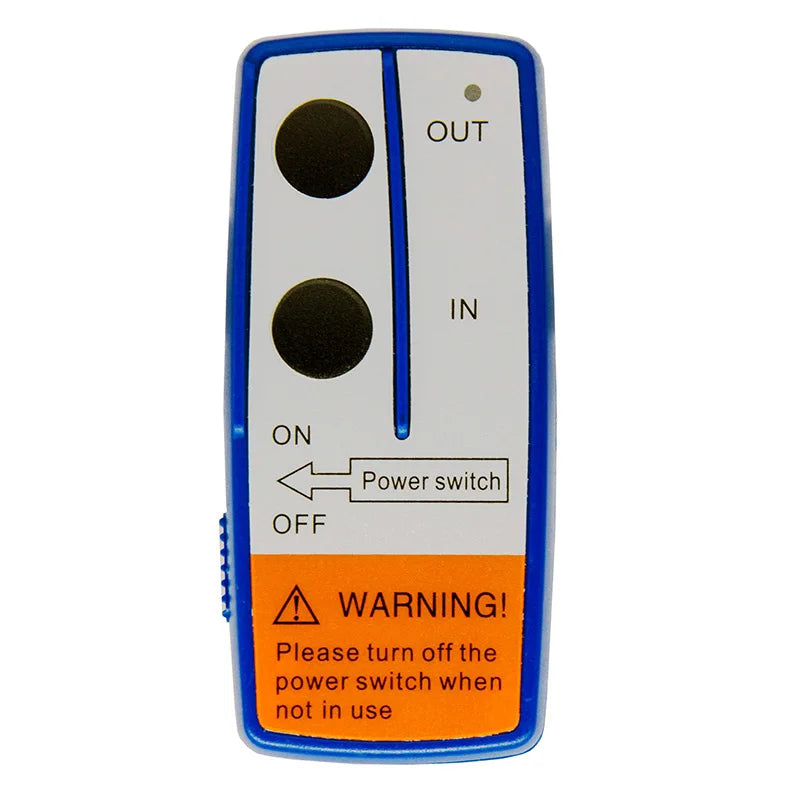

• Remote Control: Dual remote control supports both wireless and wired operation for flexible control.
• Emergency Manual Operation: Hand crank handle included for operation when power is unavailable.

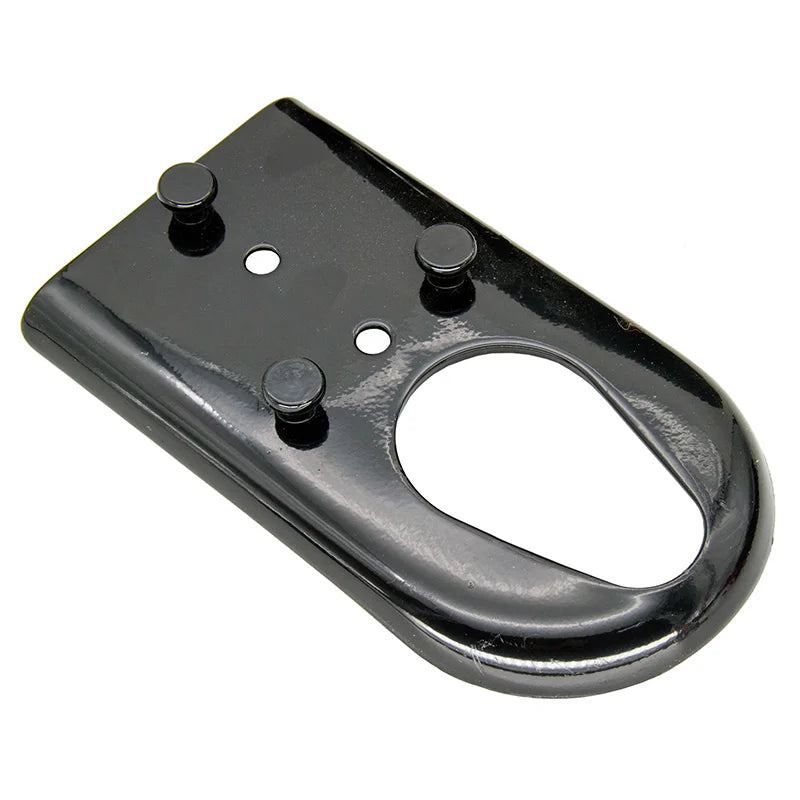

• Portable Mounting Design: Anti-slip handle and tri-point mounting plate allow easy installation and removal.
• Included Pulley Block: Galvanized steel pulley helps reduce motor load and increase pulling efficiency.
• Emergency Stop: Rotary emergency stop knob provides quick power cut-off when necessary.
• Braking System: Upgraded braking system provides stable and secure load holding during operation.
• Specifications:
  • Line Speed (No Load): 3.28 ft/min
  • Cable: Galvanized, Ø4.8mm × 9m (30ft)
  • Snap Hook Size: 1/4 inch
  • Power Supply: DC 12V
  • Remote Switch Cable Length: 3m (10ft)
  • Overall Dimensions: Approx. 570 × 320 × 220mm
• Operating Notes: This model does NOT support free-spool or manual rope release. Cable movement is powered electrically or by emergency hand crank only.

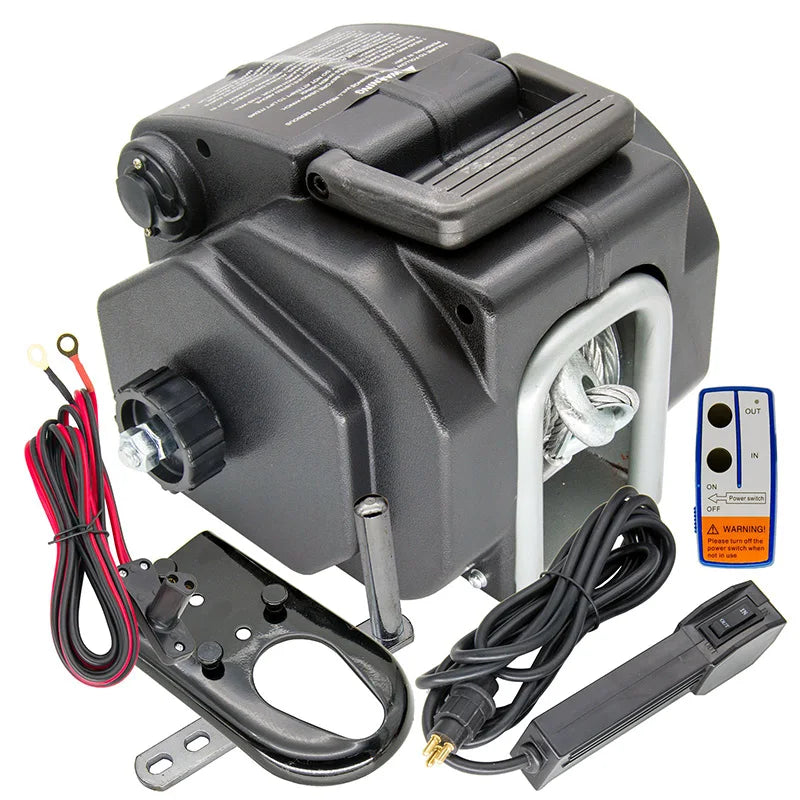

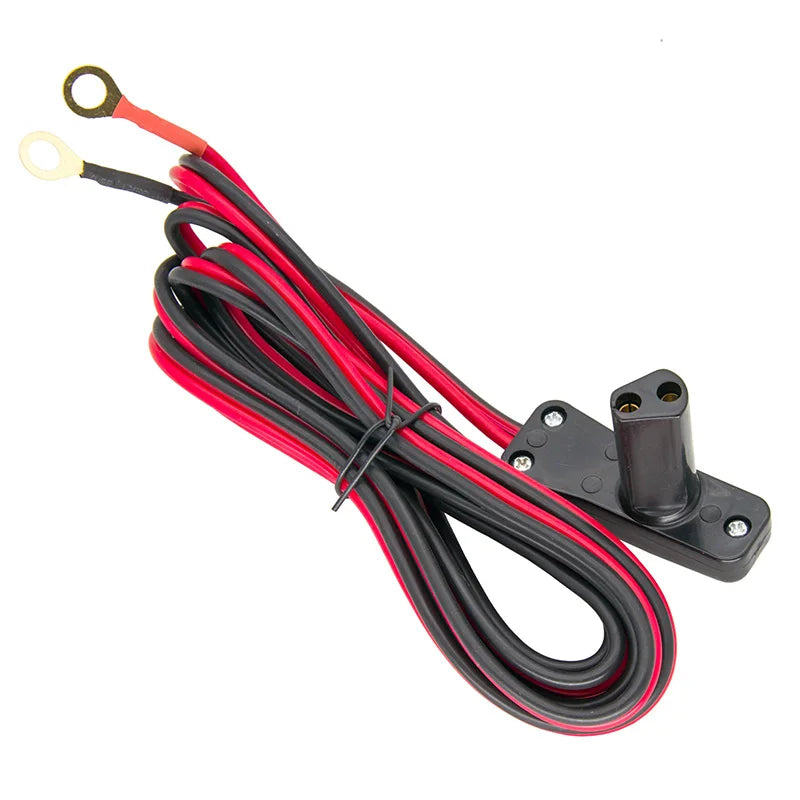

• Package Contents: 1 × 5000LBS Boat Electric Winch (with cable), 1 × Mounting Plate, 1 × Wireless Remote Control, 1 × Wired Remote Control, 1 × Hook, 1 × Power Line, 1 × Operation Manual

The winch combines a 5000LB load rating with a robust 717:1 gear ratio to handle demanding loading tasks on trailers and in marine environments. Its IP65-rated housing protects the internal components from dust and water while the galvanized steel cable, pulley, and hardware resist corrosion in salt-air conditions. Dual remote controls—wireless and wired—give you flexible operation from shore or aboard, and the emergency hand crank provides a reliable backup if power is interrupted. A rotary emergency stop, upgraded braking, and a secure mounting design enhance safety and control during loading, launching, and retrieval.
