GaiaRay Electric Solar Power Station 500W 460Wh Emergency Backup
GaiaRay Electric Solar Power Station 500W 460Wh Emergency Backup
Couldn't load pickup availability

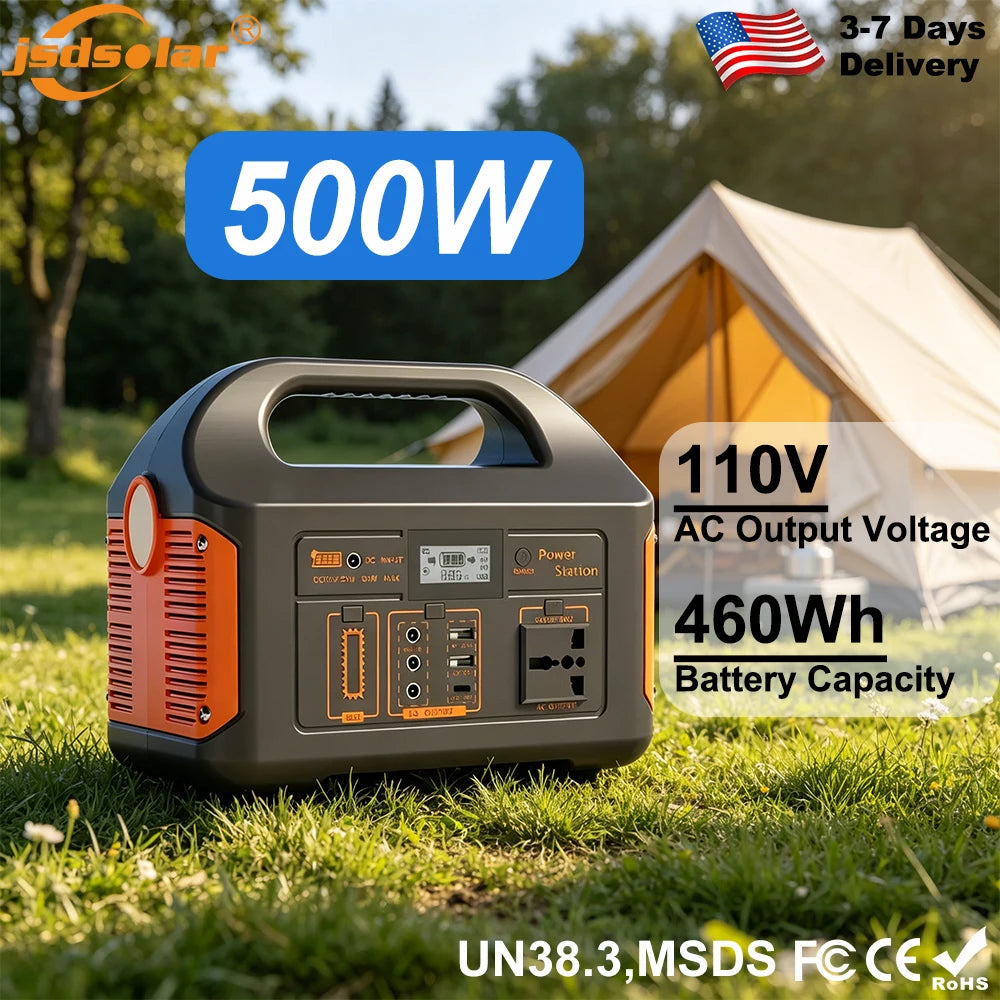

Power outages won't catch you off guard with GaiaRay's 500W Solar Power Station—460Wh LiFePO4 energy you can rely on.

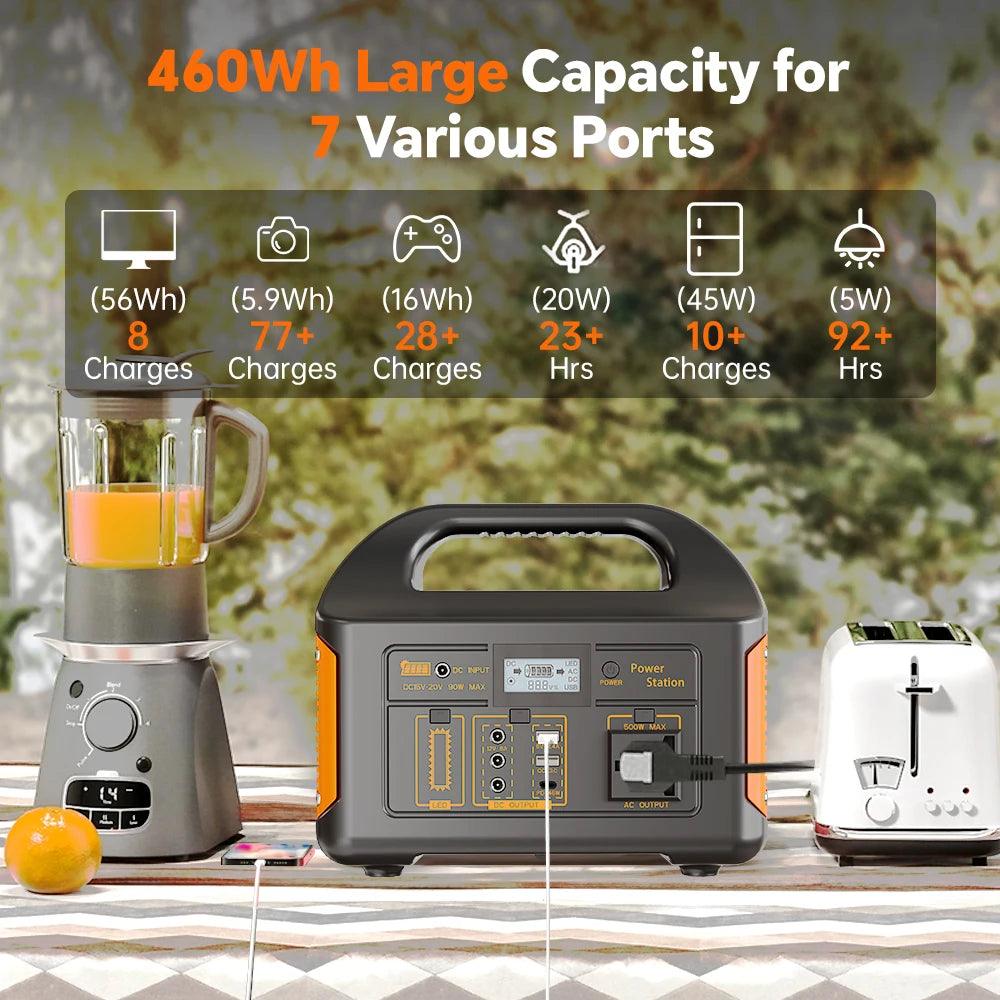

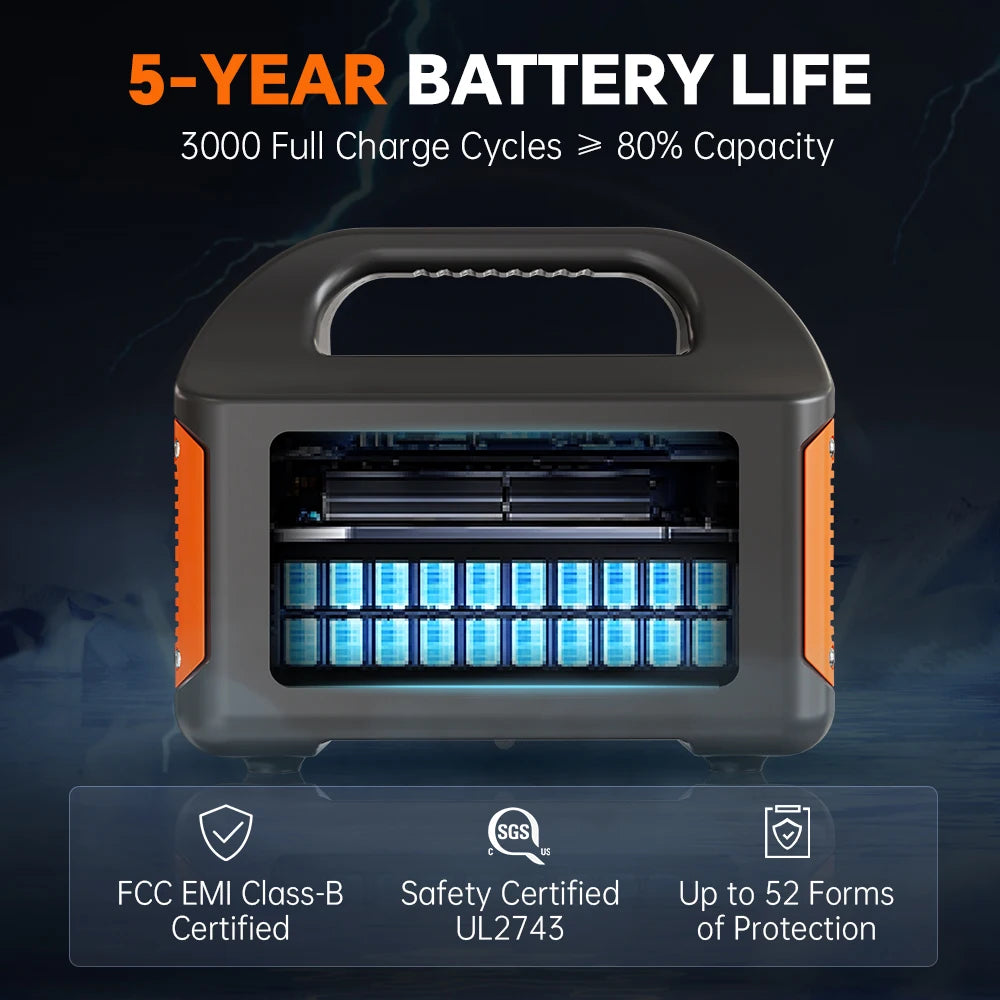

- You get a 460Wh LiFePO4 battery, delivering reliable, long-lasting backup for essential devices when the power goes out.

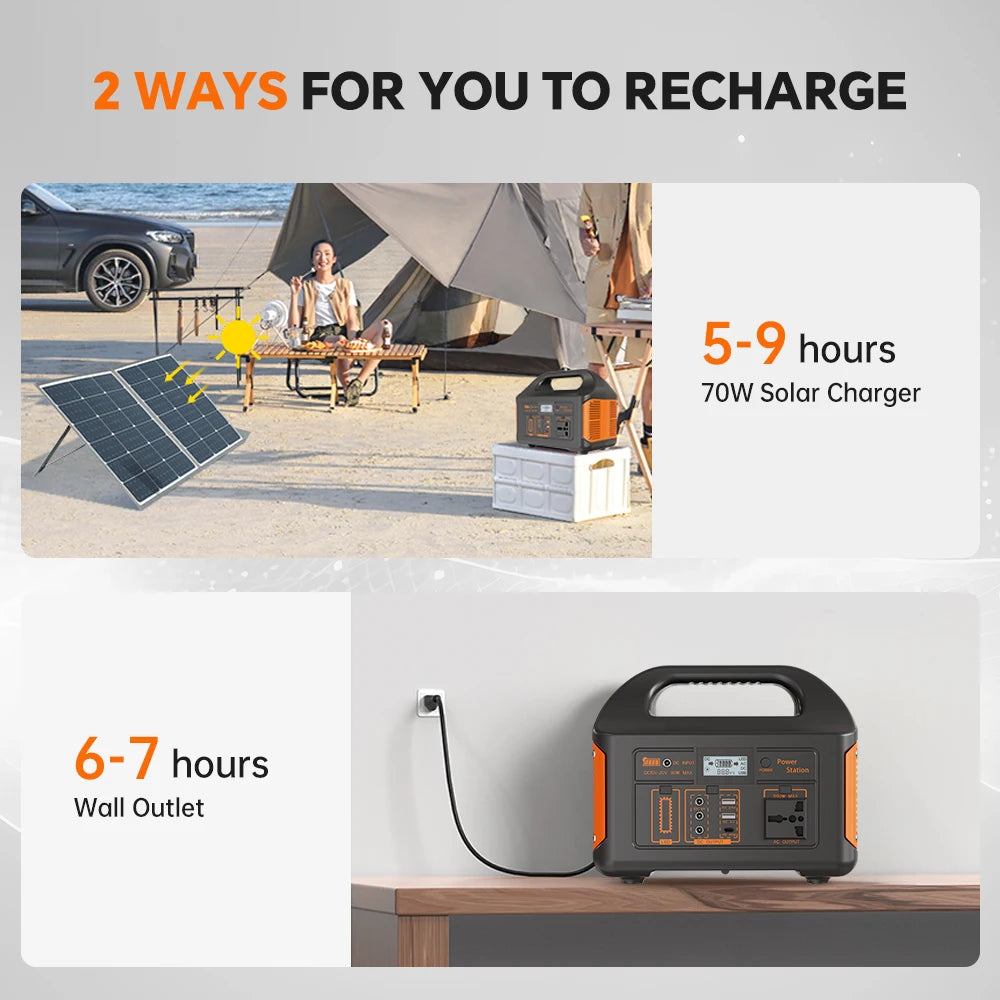

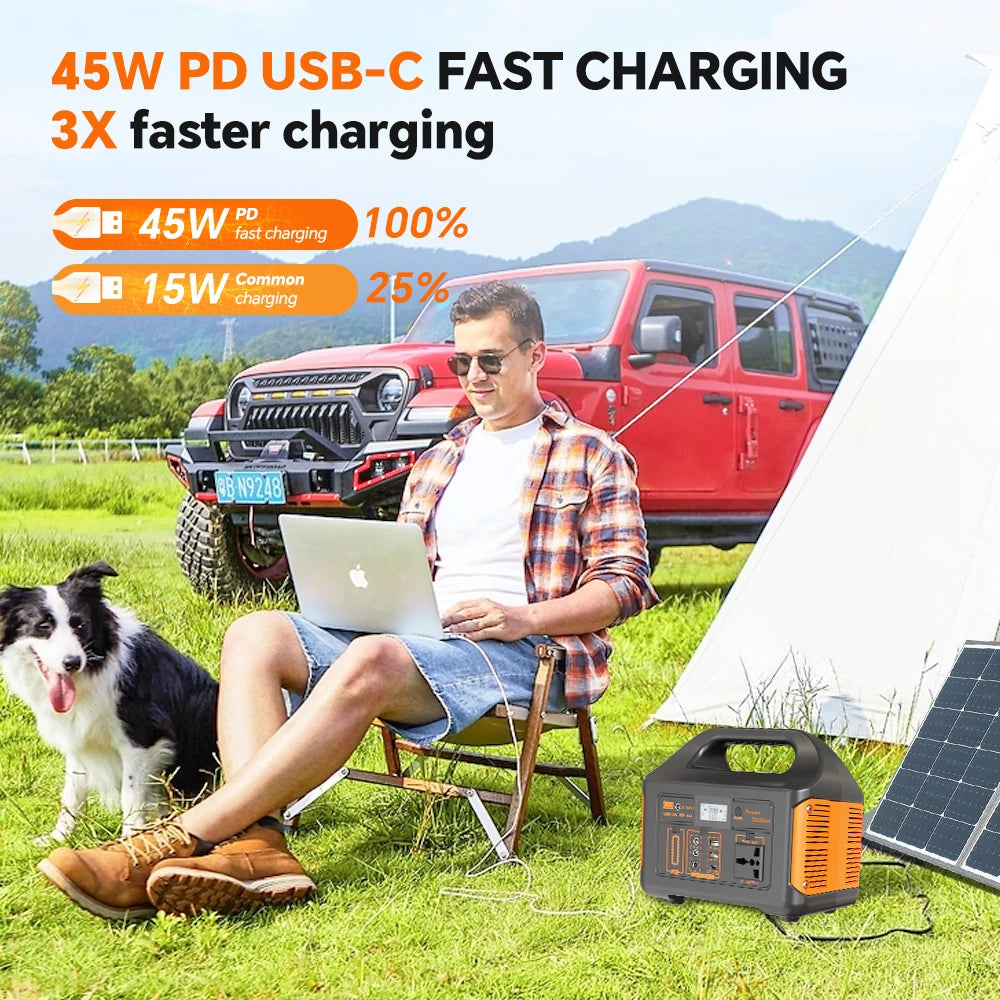

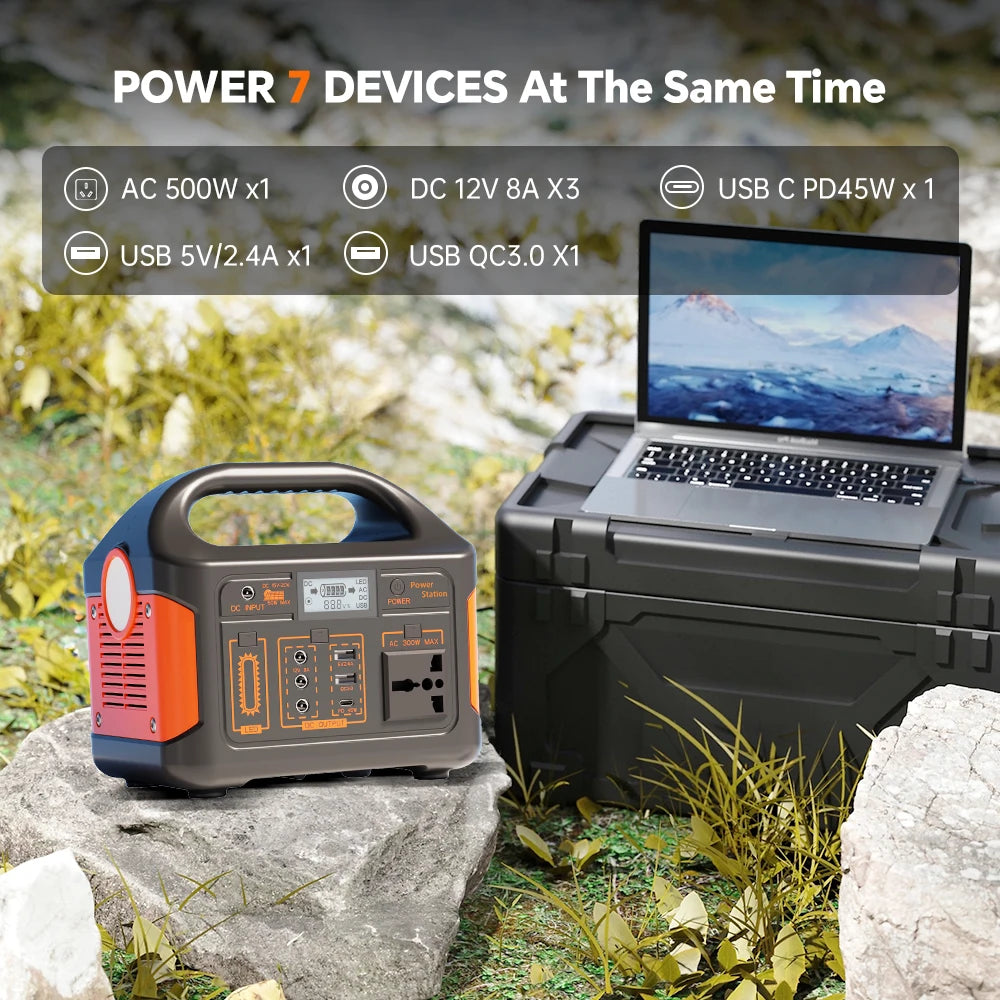

- Charge where you are: solar input up to 90W, plus USB-C PD 45W, QC 3.0, and multiple DC/AC ports for versatility.
- Smart cooling and protection keep you safe: intelligent temperature control, a quiet cooling fan, and protections against low/high voltage, overload, and short circuits.

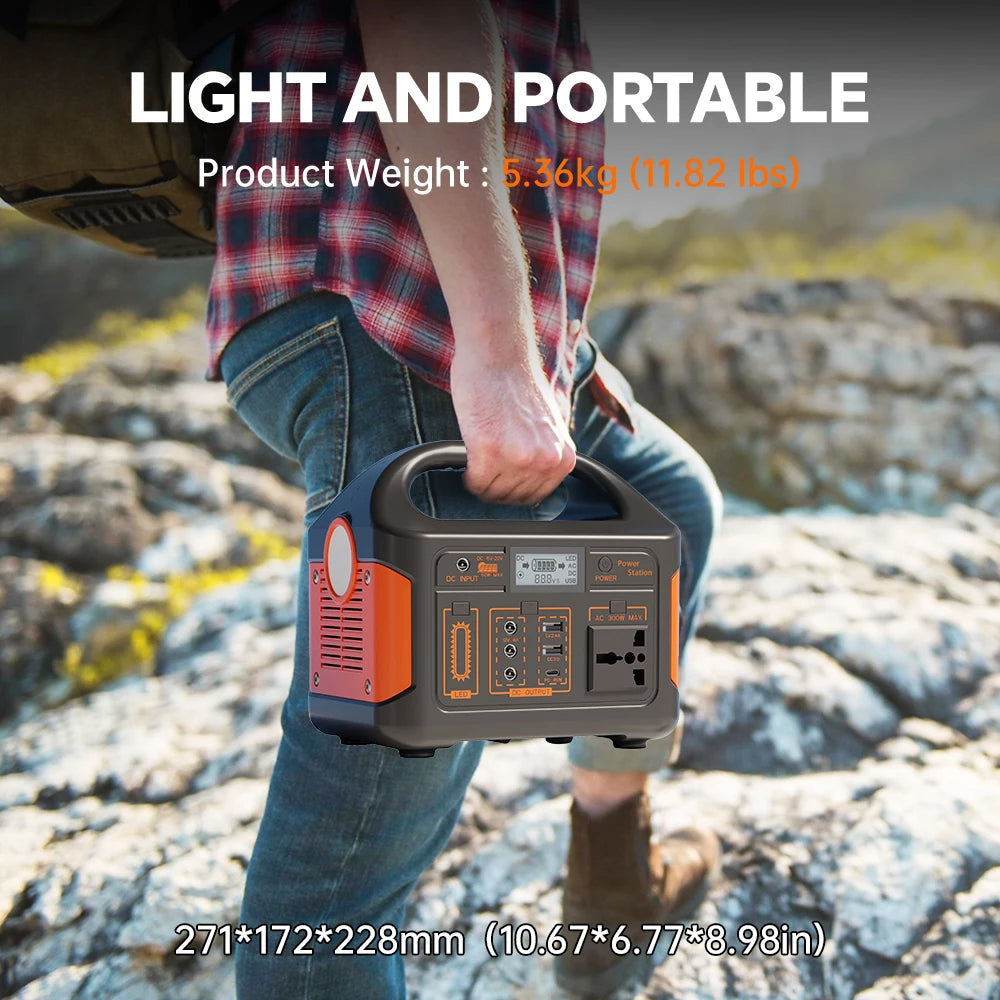

- Compact footprint at 271×172×220 mm with an LCD display you can read for voltage, state of charge, and discharge status; about 5 hours to reach 80% from full.
Rated Power |
100W |
300W |
500W |
Output Waveforr |

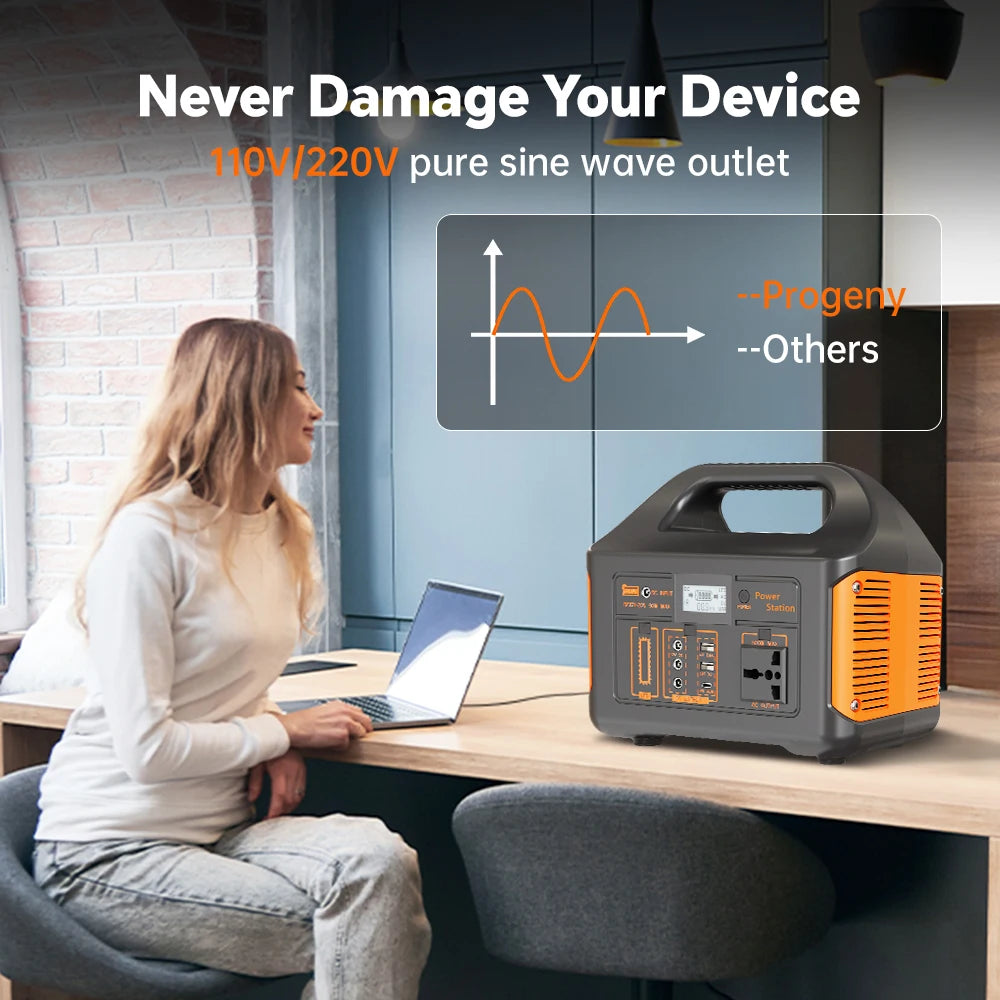

Modified sine wave |
Pure Sine Wave |
|
AC Output Voltage |
110V,220V |
||
AC Output Frequency |
50Hz/60Hz ± 0.5Hz |
||
Conversion Efficiency |
Maximum Value>90% |
||
Charging interface |
Charger Port and Solar Panel Charging Port DC5521(Built in solar intelligent controller) |
||
AC Output Socket |
Universal Socket |
||
DC Output Voltage |
DC5V 2.4A, 2 * USB;DC12V 3A, 2 * DC5521 |
USB 5V 2.4A; QC 3.0; PD 45W; DC12V8A; 3 * DC5521 Port |
|
LED Light States |
LED bright, half bright, flashing,LED off 4 states |
LED high beam,low beam. Bight, half Bight, fishing LED of 6 states |
|
Battery Type |
LiFePO4 |
||
Battery Capacity |
76.8Wh |
230Wh |
460Wh |
Solar panel charging |
15V-20V Max 30W |
15V-20V Max 50W |
15V-20V Max 90W |
Charging Current |
Maximum Value 2A |
Maximum Value 2.5A |
Maximum Value 6A |
AC Charqer Specifications |
5v 2A |
14.6V 2A |
16V 5A |
Product size (mm) |
160*100*143mm |
211*160*196mm |
271*172*220mm |
Outer packaging size (mm) |
200*100*150mm |
260*160*200mm |
300*200*260mm |
Charging Time |
After full discharge,the battery capacity reaches 80% after 5 hours OT |
||
LCD |
Battery Voltage, State of Charge, State of Charge, State of Discharge |
||
Heat Dissipation |
Intelligent Temperature Control Cooling Fan |
||
Noise |
1Meter Distance <45dB |
||
Protection Functions |
Low Voltage, Over voltage, OverLoad, Over Temperature, Short Circuit |
||
